Description
Features
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocolSupport DNS function

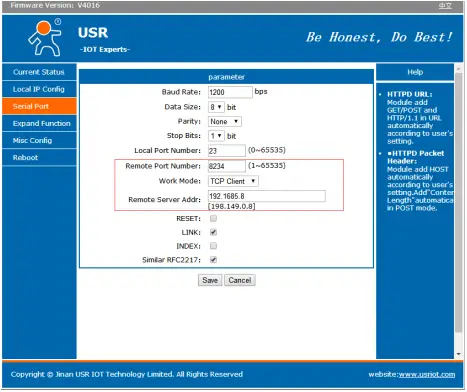

Set parameters through webpage
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MAC address bought from IEEE, user can define MAC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Support customization
Parameter
Voltage: DC 4.75 ~ 7V
Current : 150mA
Size: 71 x 60 x 25 mm
Operating Temp: -25 ~ 75°C
Storage Temp: -40 ~ 105°C, 5 ~ 95% RH
Interface: RS232
Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
