HM-01 ประตูรั้วบ้านอัตโนมัติ

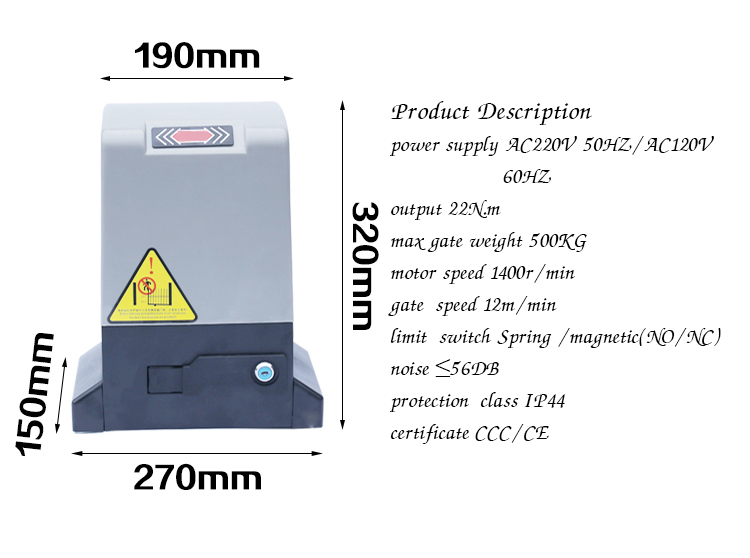

power supply                                      AC220V 50 HZ/AC 120V 60HZ

output torque                                      22 N.m

max gate weight                                500 KG

motor speed                                      1400 r/min

gate  speed                                        12 m/min

limit  switch                                      Spring / magnetic (NO/NC)

noise                                                   ≤56 DB

temperature                                      -45° – +65°

protection  class                              IP 44

certificate                                          CCC / CE

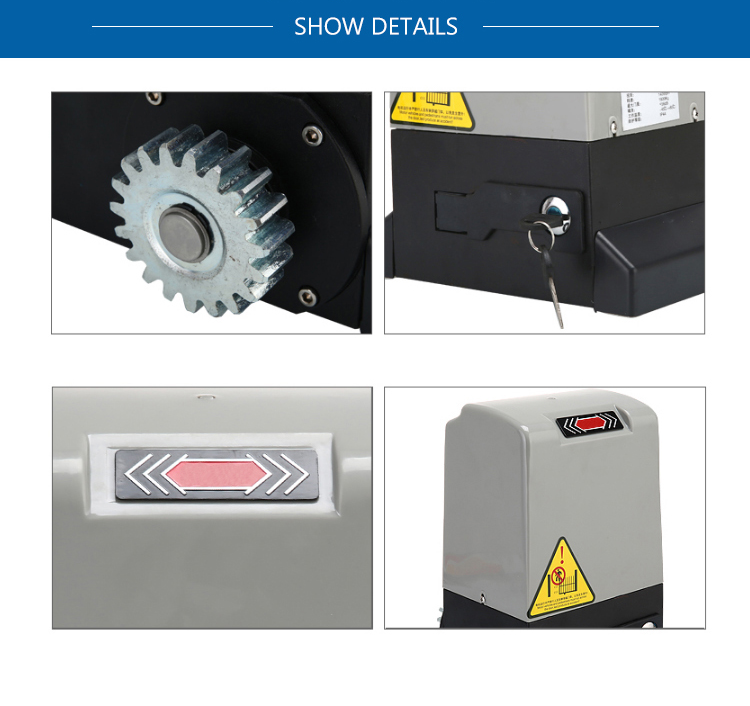

Features:
1.Soft start and stop avoids impact to the gate when it is opening and closing.
2.Die-casting A-alloy mechanism with powder spraying, stable and solid.
3.Electromechanical travel limit switches provide double protection and accurate positioning.
4.Emergency release key in case of power failure.
5.Optional line control or remote control.
6.Movement indication – the indicator lights up when the door is moving.
7.Infrared protection to ensure high security.
8.Open and close limits have a self-locking function.
9.Built-in max motor running time( MRT) adjustable for multiple safety protection.
10.Motor coil using copper production.
